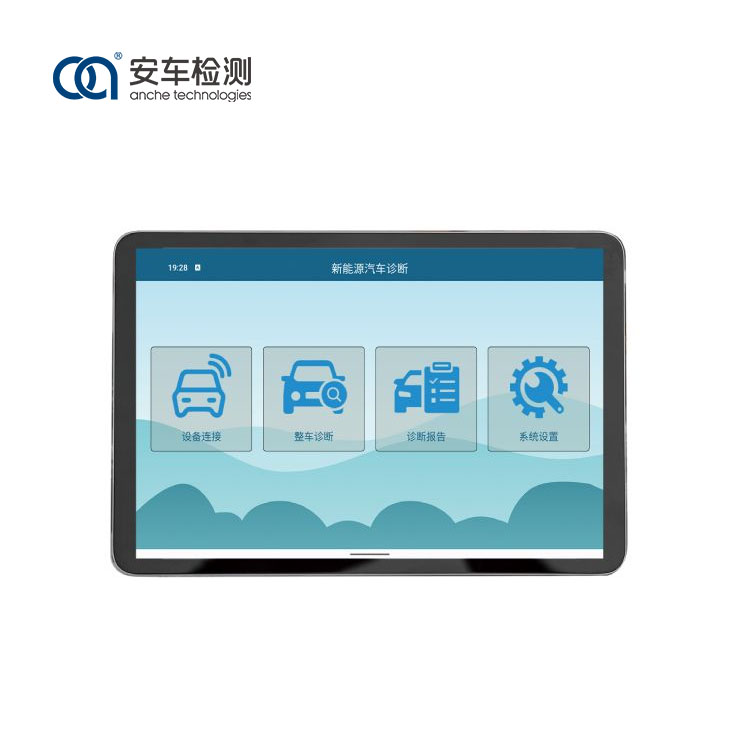

OBD Device
Based on the latest Internet diagnostic technology, OBD Device is a special fault diagnosis, detection, maintenance and management equipment for new energy vehicles. It is based on the brand new Android+QT operating system, which facilitates cross-border integration. It covers the most complete car models, achieving fault diagnosis for all new energy vehicle models and systems. Combined with the progress of PTI centers and workshops, it deeply integrates and is more in line with the full scenario application of the new energy vehicle post inspection and maintenance service market.
Send Inquiry
Product Description
The OBD device can cover most new energy vehicle models in the current market. This product adopts embedded technology with a built-in tire pressure module, supporting special functions such as new energy vehicle diagnosis, battery pack test, fault code reading, and fault code clearing. It has strong functions and stable performance.
Application
OBD Device is mainly applicable for the inspection and maintenance of components such as new energy vehicle systems, battery packs, and battery/motor/electronic control system management system, as well as the evaluation of new energy used car transactions and the management of new energy test centers and workshops.
Advantages
1. It is a comprehensive diagnostic device for new energy vehicles, covering over 95% of new energy vehicle models, with high accuracy and more comprehensive data.
2. It supports special test for battery pack diagnosis.
3. It supports report generation with one click.
4. It supports data storage and evidence retention.
5. It helps technicians improve their maintenance skills and quickly solves problems in diagnosis and maintenance problems for new energy vehicles.
6. It can deeply develop and connect business systems for new energy vehicles annual inspection services.
7. Functional modular design facilitates the integration of relevant inspection and maintenance systems.
8. New industrial design and fit for the working environment of new energy vehicle test centers and workshops.
Parameters
|
Basic parameters |
|
|
Dimension |
275.5*187.5*22mm |
|
Weight |
1,000g |
|
Color |
Black |
|
Screen |
10.1 inch IPS screen, 16:10, resolution: 800*1280, 450 nits, 5-point G+G capacitive screen |
|
Camera |
Front 5.0MP+Rear 130MP |
|
Power adaptor |
AC100V-240V, 50Hz/60Hz, output DC 5V/3A |
|
I/O interface |
USB 2.0 Type-A *1, USB Type C*1 SIM card *1, TF card *1 (maximum 512GB) HDMI 1.4a *1 12pins Pogo Pin *1 Φ3.5mm standard earphone jack *1 Φ3.5mm DC power interface *1 |
|
Performance parameters |
|
|
Processor |
MTK 8 core, 2.0GHz |
|
Operating system |
Android 11/GMS + self-developed diagnosis system |
|
Memory |
6GB+64GB |
|
Battery |
Built in polymer lithium-ion battery 8,000mAh/3.7V |
|
Endurance |
About 8h (50% volume and 200 lumen brightness by default, playing 1080P HD video) |
|
Wireless communication |
|
|
WiFi |
WiFi 5 and 802.11a/b/g/n, frequency 2.4G/5.0G |
|
Bluetooth |
Bluetooth 4.2 |
|
2G/3G/4G (optional) |
GSM: B2/B3/B5/B8 WCDMA:B1/B2/B5/B8 TD-S: B34/B39 TDD: B38/B39/B40/B41N FDD: B1/B2/B3/B4/B5/B7/B8/B11/B20/B28a/B28b |
|
GNSS |
Built-in GPS, Glonass, Beidou (G+G+B) |
|
Product reliability |
|
|
Working temperature |
-10°C~50°C |
|
Storage temperature |
-20°C~60°C |
|
Humidity |
95%, non-condensing |
|
Protection property |
IP65 certified, MIL-STD-810G certified |
|
Drop height |
1.22m fall resistant |
