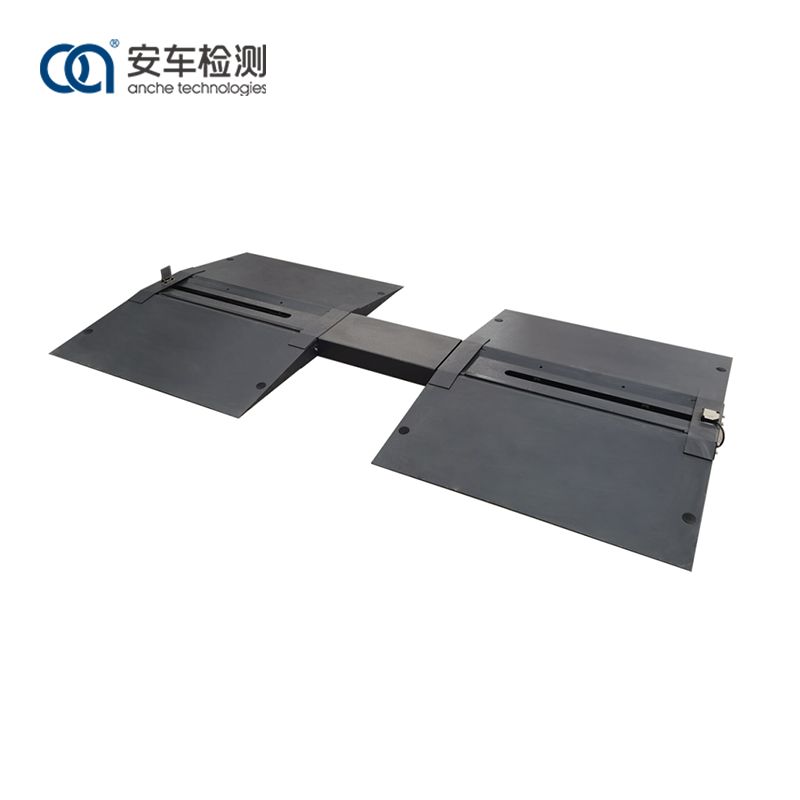

Portable Tyre Tread Depth Measuring Device

Working principle

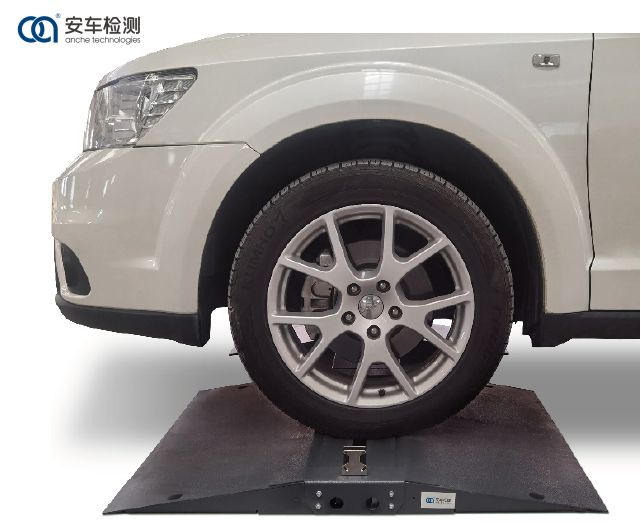

Anche portable tyre tread depth measuring device adopts laser photography technology. When the front and rear wheels of the vehicle pass through the laser photography device in sequence, detailed contour information of the tire tread depth of all four wheels can be obtained, which is clear and intuitive. It can accurately present the three-dimensional image of the tire cross-section and the data of the tread depth at each part of the tire cross-section, thereby judging whether it is qualified or not.

Features and advantages:

(1) Adopting the principle of high-precision laser ranging, it is highly reliable and the measurement accuracy can be up to 0.1mm;

(2) Test is fast and efficient, with an average test time of 45 seconds per vehicle;

(3) With remote control or computer operation, the operation is simple with short training time;

(4) By analyzing the wear of tyres, it is possible to preliminarily determine the adjustment of chassis parameters and provide data support for subsequent repairs and maintenance;

(5) The local display screen can directly show the results, and detailed reports can be queried through the upper computer or uploaded to the cloud. If a work order needs to be generated, it can be customized;

(6) Users can choose to equip with license plate recognition devices, touch screens, LCD screens, printers and other functions as needed;

(7) Installation method: underground or ground surface installation (ground surface installation is suitable for passenger vehicles with a chassis height of 100mm or above);

(8) The equipment has a lower height, making it easy for low-chassis vehicles to pass through.

Application

Anche portable tyre tread depth measuring device is designed and manufactured strictly in accordance with the Chinese national standards GB/T28529 Platform brake tester and JJG/1020 Platform brake tester. It is logical in design, sturdy and durable in its components, precise in measurement, simple in operation, comprehensive in functions, and clear in display. The measurement results and guidance information can be displayed on the LED screen.

Anche is a professional manufacturer of vehicle tyre tread depth measuring device, with a professional and strong R&D and design team, which can customize the needs of different customers.

Anche portable tyre tread depth measuring device is suitable for different industries and fields, and can be used in the automotive aftermarket for maintenance and diagnosis, as well as in motor vehicle test centers for vehicle inspection.
