Vehicle Remote Sensing Test System

Advantages and features of Vehicle Remote Sensing Test System

1) Unmanned automatic detection

It can simultaneously detect gasoline and diesel vehicles, automatically achieving real-time unmanned multi-lane exhaust emission detection.

2) Highly integrated design (ACYC-R600SY)

Compact in appearance and easy to install, debug, carry, and operate.

3) Real time wireless data transmission

The check point data is transmitted in real-time wirelessly through 4G network, reducing installation restrictions and lowering construction difficulty.

4) System operation monitoring through internet

It supports internet remote control, allowing for remote monitoring and data management from any location.

5) Automatic timing calibration

Equipped with a built-in air chamber, it can automatically calibrate the instrument on time without any manual intervention.

6) Low energy consumption

The entire device comes with lithium battery power supply, reducing regional restrictions.

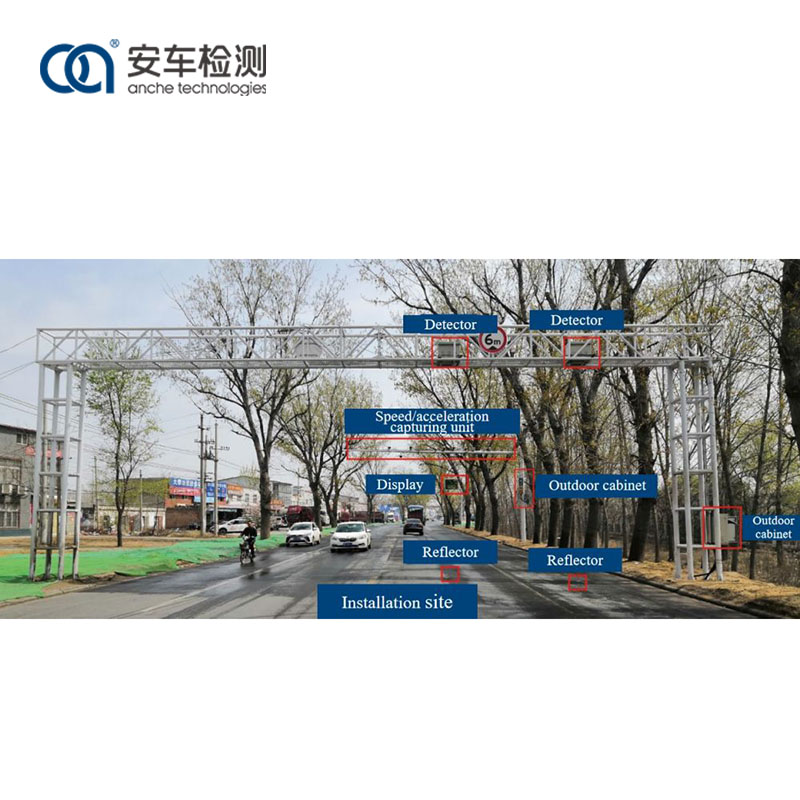

7) Large measurement coverage range (ACYC-R600S)

The installation method of the gantry can detect different types of vehicles without affecting their normal running.

8) Fully automatic license plate recognition system

High license plate recognition rate and it is capable of automatically recognizing license plates.

9) Real time display of test results on LED screen (ACYC-R600S)

The test results are wirelessly transmitted to the LED screen, making it easier for operators and drivers to obtain the results.

10) Real-time law enforcement mode

It can provide a law enforcement mode, which can judge vehicle emission results on site and print test reports, and achieve multi-system pairing function.

11) Built-in meteorological station

Real time monitoring of the temperature, humidity and atmospheric pressure of the equipment itself and the environment to ensure the stability of equipment operation.

12) Speed and acceleration detection (optional)

Built-in speed measurement or radar speed measurement and customers can use it flexibly.

Principles for selecting remote sensing check points:

1. Uphill sections are recommended, while straight sections should be 200 meters away from the intersection ahead. Downhill sections are not recommendable.

2. Asphalt and cement flooring, dry road surface, no dust or water splashes from passing vehicles.

3. It is not recommended to install the device on bridges and in culverts and tunnels.

4. It should be avoided to install it at the exit of a parking lot or a residence community and to test cold start vehicles.

5. Congested roads should be avoided and it is not recommended to install it at the entrance of large enterprises or schools.

6. The vehicles should travel in the same direction.

7. It is advisable to have a traffic flow of around 1000 vehicles per hour, with an average speed of 10-120 km/h.

8. There should be an appropriate distance between two vehicles to avoid mixture of smoke plumes.

9. Select vertical or horizontal remote sensing equipment based on the characteristics of traffic flow on the road section.

10. Temperature: -30~45℃, humidity: 0~85%, no rain, fog, snow, etc.

11. Altitude: -305 ~ 3048m.
