10-Ton Plate Brake Tester

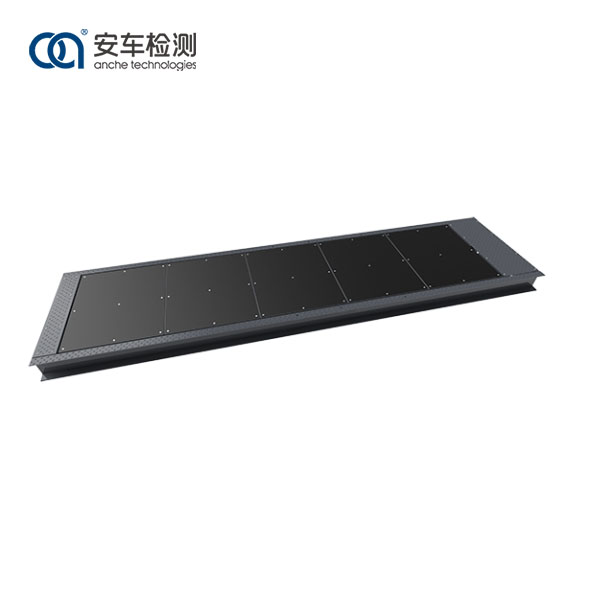

The 10-ton plate brake tester can test the braking performance of vehicles with lower chassis and ABS device, and can truly simulate the braking characteristics of the vehicles on real road. During the testing process, the forward tilt of the vehicle can be fully reflected, making the measurement results more in line with the road test conditions. Anche plate brake tester can test the maximum braking force, dynamic and static axle load, and maximum braking difference between left and right wheels of the vehicle in motion.

Working principle of 10-Ton Plate Brake Tester:

Measurement principle of wheel load:

The wheels press against the load-bearing plate, and the wheel load causes elastic deformation of the sensor strain bridge. The strain bridge becomes unbalanced, and the bridge outputs an unbalanced voltage. The voltage is linearly related to the deformation of the strain bridge, and the deformation of the bridge is also linearly related to the gravity it receives. The control system converts the collected electrical signals into wheel load signals to measure the wheel load.

Measurement principle of braking force:

When the vehicle runs on the brake tester and the brakes are applied forcefully, the friction between the wheels and the plate causes the load-bearing plate to generate a tension force on the braking force sensor. The sensor strain bridge undergoes elastic deformation, and the strain bridge becomes unbalanced, outputting an unbalanced voltage. This voltage is linearly related to the deformation of the strain bridge, and the deformation of the bridge is also linearly related to the braking friction force it receives. The control system converts the collected electrical signals into braking force signals based on this characteristic to measure the braking force.

Characteristics:

1. It is welded from a solid square steel pipe and carbon steel plate structure, with a sturdy structure, high strength, and beautiful appearance.

2. The tester plate adopts a special corundum process, with high adhesion coefficient and long service life.

3. The measurement components use high-precision force and wheel load sensors, which can obtain precise and accurate data.

4. The signal connection interface adopts an aviation plug design, which ensures fast and efficient installation and stable and reliable data.

5. The brake tester has strong compatibility and can be compatible with different vehicle models.

Application of 10-Ton Plate Brake Tester:

Anche plate brake tester is designed and manufactured strictly in accordance with the Chinese national standards GB/T28529 Platform brake tester and JJG/1020 Platform brake tester. It is logical in design, sturdy and durable in its components, precise in measurement, simple in operation, comprehensive in functions and clear in display. The measurement results and guidance information can be displayed on the LED screen.

Anche plate brake tester is suitable for different industries and fields, and can be used for maintenance and diagnosis in the automotive aftermarket, as well as for vehicle inspection at test centers.
